USB Type-A Remotely Controllable AB Switch with CE & UL Listed Wide Range Power Module

April 29, 2010 - PRLog -- Switch between two USB devices without having to disconnect cables
Share a USB device between 2 PC's
Perfect to connect a computer to multiple USB devices

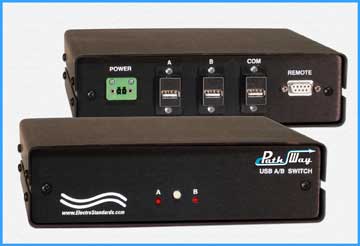

The PathWay® Model 4502 USB Type-A A/B Switch with Remote Control allows the user the capability of accessing two USB Type-A interface devices connected to the A and B ports via one USB Type-A interface device connected to the COMMON port.

The switch may be controlled manually via the front panel pushbutton or remotely from an RS232 serial port located on the rear of the unit.

Switch position status may be attained via the front panel LED display or the REMOTE port located on the rear of the unit.

Features:
The A, B, and Common ports all are Type-A USB connectors.
All (4) signals are supported.
The switch ports are transparent to all data.
Front panel pushbutton control can be locked out remotely.
Remote control is via RS232 serial data commands to DB9 Remote port.
Remote commands may also obtain switch status (switch position and
lockout status).
Front panel LEDs display the switch position and power status.
The unit maintains last set position on power loss and continues to pass
data.
Rugged aluminum desktop enclosure provides EMI/RFI shielding.
Specifications:

PORT CONNECTORS: (3) USB Type A connectors labeled A, B, and Common.
FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
DISPLAY: (2) Front panel LED's display switch position and power status.
REMOTE: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial
Data for Remote Control operation.
POWER: UL approved 120VAC, 60Hz wall mount power module supplies
12 VDC, 500 mA to the unit.
DIMENSIONS: Desktop configuration 7.75" W x 2.0" H x 7.0" D (19.7 x 5.1 x 17.8 cm)
WEIGHT: Approximately 2.8 lbs (1.3 kg)
Option: Wide Range Power Supply: (Cat No. 517277) CE and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz in place of the standard 115VAC or 120VAC, power module.  Ideal for international applications.

To view more about Model 4502, visit http://www.electrostandards.com/ProductDetail/?productid=...

To view more of our Network Switches, visit http://www.electrostandards.com/Products-By-Category/?cat...

# # #

Manufactures copper/fiber optic network switches/cable assemblies, interface converters, strain gage indicators, digital signal conditioners. Designs/Installs voice/data networks. R&D engineering services specializing in control systems.
